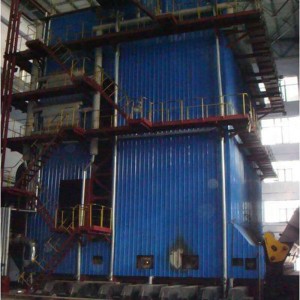

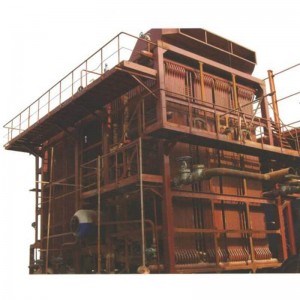

DHL Coal Fired Boiler

Short Description:

DHL Coal Fired Boiler Product Description DHL series boiler is single drum horizontal chain grate bulk boiler. The burning part adopts flake chain grate to match with high-quality auxiliary equipment and perfect automatic control system, which ensures safe, stable and efficient operation of boiler. DHL series coal fired boilers are designed and optimized for applications to produce low, medium and high pressure steam or hot water with rated evaporation capacity from 10 to 65 ton/hr and rated ...


  • Min.Order Quantity: 1 set
  • Supply Ability: 50 sets per month
  • Product Detail

    Product Tags

    DHL Coal Fired Boiler

    Product Description

    DHL series boiler is single drum horizontal chain grate bulk boiler. The burning part adopts flake chain grate to match with high-quality auxiliary equipment and perfect automatic control system, which ensures safe, stable and efficient operation of boiler.

    DHL series coal fired boilers are designed and optimized for applications to produce low, medium and high pressure steam or hot water with rated evaporation capacity from 10 to 65 ton/hr and rated pressure from 1.25 to 9.8 MPa. The design heat efficiency of DHL coal boilers is up to 81~82%.

    Features:

    1. High efficiency, low fuel consumption; low operating costs

    2. High safety level, panel-type heating surface in the furnace, furnace heated evenly.

    3. Improve the furnace temperature field to ensure safe operation of the boiler

    4. Reasonable flue gas speed, heating surface without ash deposition and no abrasion, under the condition of no soot-blowing, the boiler can work full-load, high-efficiency and safety in long term.

    5. The big and tall boiler furnace can be designed according to the different fuel to improve the burning rate of fuel and remove black smoke.

    6. All independent loop and reasonable coal boiler injected circulation are specially designed and adopted for the hot water boilers. The medium speed in loop of heat surface is higher than national standard.

    7. Environmental protection effect is good, use multi-level dust removal, reduce exhaust gas concentration, Ringelmann blackness is less than 1.

    Application:

    DHL series coal fired boilers are widely used in chemical industry, paper making industry, textile industry, food industry, pharmaceuticals industry, heating industry, construction industry.



    Technical Data of DHL Coal Fired Hot Water Boiler
     Model Rated Thermal Power (MW) Rated Output Pressure (MPa) Rated Output Temperature (°C) Rated Input Temperature (°C) Radiation  Heating Area (m²) Convection  Heating Area (m²) Air Preheater Heating Area (m²) Active Grate Area (m²) Flue Gas Temperature (°C) Installation Dimension
    (mm)
    DHL29-1.6/130/70-AII 29 1.6 130 70 195 640 275 34.4 153 12600x11200x15000
    DHL46-1.6/130/70-AII 46 1.6 130 70 296 786 624 57.2 150 14600x13600x15000
    DHL58-1.6/130/70-AII 58 1.6 130 70 361 1181 804 70.9 159 13200x15000x17000
    DHL64-1.6/130/70-AII 64 1.6 130 70 371 1556 1450 78.27 147 13800x15000x17000
    DHL70-1.6/130/70-AII 70 1.6 130 70 474 1488 901 87.8 150 14200x17000x17600
    Remark 1. DHL coal fired hot water boilers are suitable for all types of coals.  2. Design thermal efficiency is 82~84%.



    Technical Data of DHL Coal Fired Steam Boiler
     Model Rated Evaporation Capacity (t/h) Rated Steam Pressure (MPa) Feed Water Temperature (°C) Rated Steam Temperature (°C) Radiation Heating Area (m2) Slag Screen Heating Area (m2) Superheater Heating Area (m2) Convection Heating Area (m2) Economizer Heating Area (m2) Air Preheater Heating Area (m2) Active Grate Area (m2) Coal Consumption (kg/h) Flue Gas Temperature () Installation Dimension
    (mm)
    DHL35-3.82-AII 35 3.82 105 450 152 35.4 271 630 693.3 31.4 6310 143 14500x10500x14900
    DHL65-1.6-AII 65 1.6 105 204 421.4 1085.1 826 410.3 63 7792 152 18000x15300x15000
    DHL65-3.82-AII 65 3.82 150 450 293 59 510 923 1179 61.34 10940 160 16500x13400x16000
    Remark 1. Design thermal efficiency is 81~82%.  2. Heat efficiency and coal consumption is calculated by LHV 19845KJ/Kg (4740kcal/kg).

    DHL15-3
