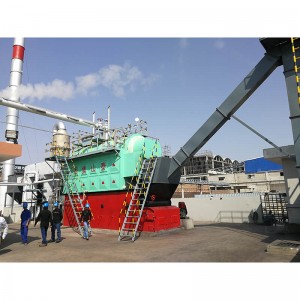

DZL Coal Fired Boiler

Short Description:

DZL Coal Fired Boiler Product Description Coal boiler (also called coal fired boiler) is widely used to generate thermal energy by burning coal that is fed into the combustion room. Coal can provide lower operating cost in comparison to other fossil fuels like oil or natural gas. Our coal boiler has the characteristics of high efficiency, energy saving, integrated control, easy installation and safe operation. DZL series coal fired boilers are specially designed and optimized to produce low p...


  • Min.Order Quantity: 1 set
  • Supply Ability: 50 sets per month
  • Product Detail

    Product Tags

    DZL Coal Fired Boiler

    Product Description

    Coal boiler (also called coal fired boiler) is widely used to generate thermal energy by burning coal that is fed into the combustion room. Coal can provide lower operating cost in comparison to other fossil fuels like oil or natural gas. Our coal boiler has the characteristics of high efficiency, energy saving, integrated control, easy installation and safe operation.

    DZL series coal fired boilers are specially designed and optimized to produce low pressure steam or hot water with rated evaporation capacity from 1 to 45 tons/hr and rated pressure from 0.7 to 1.6 MPa.  The design heat efficiency of DZL coal boilers is up to 81~82%. These coal boilers cover big market share in domestic and abroad.

    Features:

    1. Reasonable heat surface and burning device, heat efficiency is 4%~5% higher than national standard.

    2. Reasonable flue gas speed, heating surface without ash deposition and no abrasion, under the condition of no soot-blowing, the boiler can work full-load, high-efficiency and safety in long term.

    3. The big and tall boiler furnace can be designed according to the different fuel to improve the burning rate of fuel and remove black smoke.

    4. All independent loop and reasonable coal boiler injected circulation are specially designed and adopted for the hot water boilers. The medium speed in loop of heat surface is higher than national standard

    5. 1-20T/H & 0.7-14MW boiler adopt big and high strength grate, add rolling device improves the boilers’ safety, lessen coal leakage and adjust burning conveniently.

    6. Over 20T/H & 14MW boiler adopt flake type or beam type chain grate, less coal leakage, convenient burning adjustment. Closed soot cleaning avoid second pollution and save time and labor.

    7. Dust inertia separation at the furnace outlet can reduce exhaust gas concentration and lessen abrasion of rear heat surface.

    8. Compact structure makes its installation volume smaller than other types of boilers, it will shorten installation period and lower boiler room cost.

    9. Big water volume benefits for power-off protection, high ability suitable for load changing.

    Application:

    DZL series coal boilers are widely used in food factory, drinking factory, juice factory, sugar refinery, tire factory, soap factory, cement production, concrete production, paper-making, brick-making, carton plant, chemical fertilizer plant, feed mill, knit mill, tissue mill, textile mill, palm oil factory, gloves factory, alcohol plant, chicken processing plant, instant noodle plant, medical and chemical industries, etc.



    Technical Data of DZL Coal Fired Hot Water Boiler
     Model Rated Thermal Power (MW) Rated Output Pressure (MPa) Rated Output Temperature (°C) Rated Input Temperature (°C) Radiation  Heating Area (m²) Convection  Heating Area (m²) Active Grate Area (m²) Flue Gas Temperature (°C) Coal Consumption (Kg/h) Max Transport Weight (Ton) Installation Dimension
    (mm)
    Exworks Type
    DZL0.7-0.7/95/70-AII 0.7 0.7 95 70 4.57 18.17 1.852 161 162.69 12.95 5368x3475x4103 Packaged
    DZL1.4-1.0/95/70-AII 1.4 1 95 70 8.28 33.38 3.15 155 323.49 16.7 5658x3781x4371 Packaged
    DZL2.8-1.0/95/70-AII 2.8 1 95 70 12.28 83.12 5.18 140 634.61 27.98 6743x3878x4980 Packaged
    DZL4.2-1.0/115/70-AII 4.2 1 115 70 13.65 120.86 8.2 162 939.3 35.45 7800x5270x4970 Assembled
    DZL5.6-1.0/115/70-AII 5.6 1 115 70 21.14 156.46 9.34 163 1256.44 20/14 8100x5900x6000 Assembled
    DZL7-1.0/115/70-AII 7 1 115 70 26.54 204.34 10.98 163 1574.27 23/18 8470x6000x6400 Assembled
    DZL10.5-1.25/130/70-AII 10.5 1.25 130 70 36.7 334.86 16.29 155 2363.24 19/21 10215x5328x7832 Semi-assembled
    DZL14-1.25/130/70-AII 14 1.25 130 70 53.78 410.85 20.84 160 3127.25 24.2/24 10722x5508x8556 Semi-assembled
    DZL29-1.6/130/70-AII 29 1.6 130 70 139 812.05 35 160 6381.68 38.8 13220x8876x9685 Bulk
    Remark 1. Design thermal efficiency is 81~82%.



    Technical Data of DZL Coal Fired Steam Boiler
     Model Rated Evaporation Capacity (t/h) Rated Steam Pressure (MPa) Feed Water Temperature (°C) Rated Steam Temperature (°C) Radiation  Heating Area (m²) Convection  Heating Area (m²) Economizer  Heating Area (m²) Active Grate Area (m²) Flue Gas Temperature (°C) Coal Consumption (kg/h) Max Transport Weight (t) Installation Dimension
    (mm)
    Exworks Type
    DZL1-0.7-AII 1 0.7 20 170 4.21 20.68 9.66 1.852 152 170.74 15.38 7548x3475x4203 Packaged
    DZL1-1.0-AII 1 1 20 184 4.21 20.68 9.66 1.852 160 172.93 15.6 7548x3475x4203 Packaged
    DZL2-0.7-AII 2 0.7 20 170 6.43 39.23 16.56 3.15 152 338 17.5 7914x3781x4833 Packaged
    DZL2-1.0-AII 2 1 20 184 6.43 39.23 16.56 3.15 161 341.71 17.7 7914x3781x4833 Packaged
    DZL2-1.25-AII 2 1.25 20 193 6.43 39.23 16.56 3.15 164 343.63 17.7 7914x3781x4833 Packaged
    DZL4-0.7-AII 4 0.7 20 170 10.55 90.45 16.56 5.18 154 664.18 26.85 8528x3878x5013 Packaged
    DZL4-1.0-AII 4 1 20 184 10.55 90.45 16.56 5.18 163 673.22 27.14 8528x3878x5013 Packaged
    DZL4-1.25-AII 4 1.25 20 193 10.55 90.45 16.56 5.18 164 676.27 27.21 8528x3878x5013 Packaged
    DZL4-1.6-AII 4 1.6 20 204 10.55 90.45 16.56 5.18 169 682.11 28.7 8528x3878x5013 Packaged
    DZL6-1.25-AII 6 1.25 105 193 18.19 121.9 53.13 7.55 165 863.6 19/14 8000x5200x6000 Assembled
    DZL6-1.6-AII 6 1.6 105 204 18.19 121.9 53.13 7.55 169 872.6 21/14 8000x5200x6000 Assembled
    DZL8-1.25-AII 8 1.25 105 193 22.14 158.86 104.64 9.34 161 1148 21/14 8100x5900x6000 Assembled
    DZL8-1.6-AII 8 1.6 105 204 22.14 158.86 104.64 9.34 165 1157.8 21/14 8100x5900x6000 Assembled
    DZL10-1.25-AII 10 1.25 105 193 25.8 200.38 130.8 10.98 160 1423.8 23/17 8430x6000x6500 Assembled
    DZL10-1.6-AII 10 1.6 105 204 25.8 200.37 130.8 10.98 162 1442.74 25/18 8430x6000x6500 Assembled
    DZL12-1.25-AII 12 1.25 105 193 25.8 250.17 261.6 12.78 149 1714.5 23/19 8600x6000x6500 Assembled
    DZL12-1.6-AII 12 1.6 105 204 25.8 250.17 261.6 12.78 150 1721.8 23/19 8600x6000x6500 Assembled
    DZL15-1.25-AII 15 1.25 105 193 34.12 331.62 117.72 16.24 159 2167.89 20/21 10215x5128x8019 Semi-assembled
    DZL15-1.6-AII 15 1.6 105 204 34.12 331.62 117.2 16.24 164 2164.7 22/21 10215x5128x8019 Semi-assembled
    DZL20-1.25-AII 20 1.25 105 193 53.78 411.8 212.4 20.84 153 2868.63 24/23.6 10722x5508x8556 Semi-assembled
    DZL20-1.6-AII 20 1.6 105 204 53.78 411.8 212.4 20.84 159 2884.7 25/23.6 10722x5508x8556 Semi-assembled
    DZL25-1.25-AII 25 1.25 105 193 99.21 457.78 476.16 24.67 152 3551 24.2 12000x8021x8904 Bulk
    DZL25-1.6-AII 25 1.6 105 204 99.21 457.78 476.16 24.67 156 3556 26 12000x8021x8904 Bulk
    DZL30-1.25-AII 30 1.25 105 193 44.5 628.6 520.8 26.88 156 4230 29.5 11700x8200x9700 Bulk
    DZL30-1.6-AII 30 1.6 105 204 44.5 628.6 520.8 26.88 160 4254.5 31 11700x8200x9700 Bulk
    DZL35-1.25-AII 35 1.25 105 193 87.2 744.2 520.8 35 155 4970.3 33.6 12200x8200x9450 Bulk
    DZL35-1.6-AII 35 1.6 105 204 124.7 685 520.8 35 158 4967.8 35.3 12710x8900x9592 Bulk
    DZL40-1.25-AII 40 1.25 105 193 125.88 759.61 729.12 35 143 5612.3 37.6 12340x9450x9604 Bulk
    DZL40-1.6-AII 40 1.6 105 204 125.88 759.61 729.12 35 146 5650.3 40 12340x9450x9604 Bulk
    DZL45-1.6-AII 45 1.6 105 204 142.11 1003.54 729.12 37 150 6374.9 24 13300x10300x9100 Bulk
    Remark 1.Design thermal efficiency is 81~82%.  2.Heat efficiency and coal consumption is calculated by LHV 19845KJ/Kg(4740kcal/kg).



    190107A

    dzl示意图
