CFB Coal Fired Boiler

Short Description:

CFB Coal Fired Boiler Product Description CFB boiler (Circulating Fluidized Bed Boiler) features good coal adaptation, safe and reliable operation, high performance and energy saving. The ash may be used as the admixture of cement, decreasing environmental pollution and increasing economic benefit. CFB boiler can burn various fuels, such as soft coal, anthracite coal, lean coal, lignite, gangue, sludge, petroleum coke, biomass (wood chip, bagasse, straw, palm husk, rice husk, etc.) CFB boiler...


  • Min.Order Quantity: 1 set
  • Supply Ability: 50 sets per month
  • Product Detail

    Product Tags

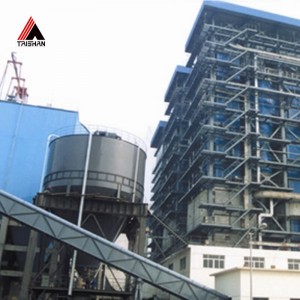

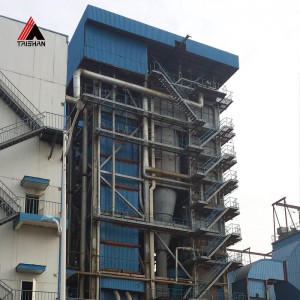

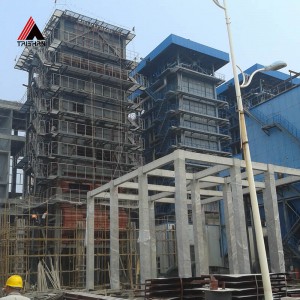

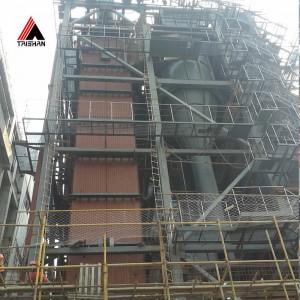

    CFB Coal Fired Boiler

    Product Description

    CFB boiler (Circulating Fluidized Bed Boiler) features good coal adaptation, safe and reliable operation, high performance and energy saving. The ash may be used as the admixture of cement, decreasing environmental pollution and increasing economic benefit.

    CFB boiler can burn various fuels, such as soft coal, anthracite coal, lean coal, lignite, gangue, sludge, petroleum coke, biomass (wood chip, bagasse, straw, palm husk, rice husk, etc.)

    CFB boilers are specially designed and optimized for applications to produce medium and high pressure steam or hot water with rated evaporation capacity from 35 to 440 ton/hr and rated pressure from 3.82 to 9.8 MPa. The design heat efficiency of CFB boilers is up to 87~90%.

    Features:

    1. Burning efficiency reaches 95%-99%, high burning rate, heat efficiency above 87%.

    2. Energy-saving, high efficiency, high flexibility of fuel, which can satisfy the burning of many kinds of fuel.

    3. Limestone can be added in bed material during burning process reacts with SO2 of flue formulates sulphate, desulphuration can satisfy environment protection

    4. Reasonable wind distribution and low temperature or furnace can control formulation of NOx and really reach environment protection.

    5. Big adjusting range load can be adjusted to 30-110%.

    6. High automatic control makes boilers running safely and economically in long term.

    7. Adopt upper exhaust high temperature cyclone separated device, high collection of bed material.

    8. High heat transfer efficiency, high ability of overload.

    Application:

    CFB boilers are widely used for power generation in chemical industry, paper making industry, textile industry, food and drinking industry, pharmaceuticals industry, sugar refinery, tire factory, palm oil factory, alcohol plant, etc.



    Technical Data of CFB Hot Water Boiler
     Model Rated Thermal Power (MW) Rated Output Pressure (MPa) Rated Output Temperature (°C) Rated Input Temperature (°C) Fuel Consumption (kg/h) Flue Gas Temperature (°C) Primary Air Temperature (°C) Secondary Air Temperature (°C) Ratio of Primary Air to Secondary Air Width
    (incl. platform) (mm)
    Depth
    (incl. platform) (mm)
    Height of drum centerline (mm)
    QXX29-1.25/150/90-M 29 1.25 150 90 9489 150 150 150 1:1 9400 13250 22000
    QXX58-1.6/150/90-M 58 1.6 150 90 18978 150 150 150 1:1 11420 15590 31000
    QXX116-1.6/150/90-M 116 1.6 150 90 37957 150 180 170 1:1 14420 20700 35000
    Remark 1. Fuel particle is 10mm, and limestone particle is 2mm. 2. Design efficiency is 88%.
    3. Desulphurization efficiency is 90%. 4. Heat efficiency and fuel consumption is calculated by LHV 12670KJ/Kg(3026kcal/kg).



    Specifications of CFB Steam Boiler
     Model Rated Evaporation Capacity (t/h) Rated Steam Pressure (MPa) Feed Water Temperature (°C) Rated Steam Temperature (°C) Fuel Consumption (kg/h) Flue Gas Temperature (°C) Primary Air Temperature (°C) Secondary Air Temperature (°C) Ratio of Primary Air to Secondary Air Width
    (incl. platform) (mm)
    Depth
    (incl. platform) (mm)
    Height of drum centerline (mm)
    TG35-3.82-M 35 3.82 150 450 8595 150 150 150 1:1 9200 13555 25000
    TG75-3.82-M 75 3.82 150 450 18418 150 150 150 1:1 11420 15590 32500
    TG75-5.29-M 75 5.29 150 485 18321 150 150 150 1:1 11420 15590 32500
    TG130-3.82-M 130 3.82 150 450 31924 150 180 170 1:1 14420 20700 35000
    TG130-5.29-M 130 5.29 150 485 31756 150 180 170 1:1 14420 20700 35000
    TG130-9.8-M 130 9.8 215 540 30288 150 200 200 1:1 14010 20800 37000
    TG220-3.82-M 220 3.82 150 450 54025 150 200 200 1:1 16700 23200 41500
    TG220-5.29-M 220 5.29 150 485 53742 150 200 200 1:1 16700 23200 41500
    TG220-9.8-M 220 9.8 215 540 51256 150 200 200 1:1 16700 23200 41500
    TG440-13.7-M 440 13.7 250 540 102520 150 200 200 1:1 29000 32000 50050
    Remark 1. TG steam boilers are suitable for all types of fuels. 2. Fuel particle is 10mm, and limestone particle is 2mm.
    3. Design efficiency is 88%. 4. Desulphurization efficiency is 90%. 5. Heat efficiency and fuel consumption is calculated by LHV 12670KJ/Kg(3026kcal/kg).

    DHX35-1 示意图 示意图2
