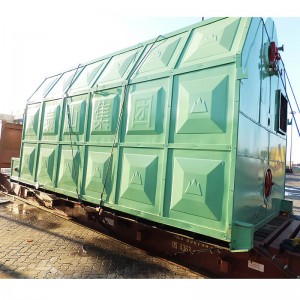

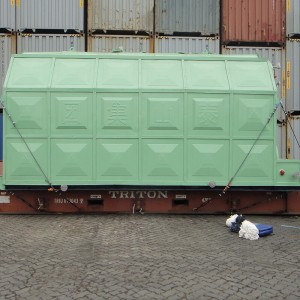

    SZL Coal Fired Boiler

    Product Description

    SZL series coal boiler has the characteristics of big heat surface, high heat efficiency and the squama type chain grate, less coal leakage, respective air chamber and separated adjustment, sufficient and steady burning, outlet dust separator device reduces flue gas drain, frequency control, PLC & DCS auto-control.

    SZL series coal fired boilers are specially designed and optimized to produce low and medium pressure steam or hot water with rated evaporation capacity from 2 to 35 ton/hr and rated pressure from 0.7 to 2.5 MPa. The design heat efficiency of SZL coal boilers is up to 81~82%.

    Features:

    1. Ex-work by up and down separate parts,lay out by single floor. With compact structure, easy installation and less civil investment .

    2. Automatic control at water feeding, coal feeding chain grate running, dust removing, ID air control, FD air control. Interlock protection of over pressure (for steam boiler), over temperature (for hot water boiler), high and low water level (for steam boiler), guarantee its safely running

    3. Two sides feeding air, single air chamber, separate adjustment. To avoid wrong pass air and partial burning, due to air distribution unevenly under chain grate.

    4. Use high strength big size chain plate, avoid the breakage of the plate, reduce coal leakage·

    5. Add rolling wheel under the chain grate, the sliding friction change into rolling friction, reduce the grating running resistance, improve the reliability.

    6. Sufficient heating surface, high efficiency, With heat efficiency 4-6% higher than national standard.

    7. With short and tall front arch,low and long back arch, guarantee the stable burning of coal. The arch can be designed according to different coal to fulfil soft coal and anthracite coal burning

    8. Match reliable accessories to guarantee the stable running.

    Application:

    SZL series coal fired boilers are widely used in food factory, drinking factory, juice factory, sugar refinery, tire factory, soap factory, cement production, concrete production, paper-making, brick-making, carton plant, chemical fertilizer plant, feed mill, knit mill, tissue mill, textile mill, palm oil factory, gloves factory, alcohol plant, chicken processing plant, instant noodle plant, medical and chemical industries, etc.



    Technical Data of SZL Coal Fired Steam Boiler
     Model Rated Evaporation Capacity (t/h) Rated Steam Pressure (MPa) Feed Water Temperature (°C) Rated Steam Temperature (°C) Radiation Heating Area (m2) Convection Heating Area (m2) Economizer Heating Area (m2) Active Grate Area (m2) Coal Consumption (kg/h) Total Boiler Weight (kg) Installation Dimension
    (mm)
    SZL6-1.25-AII 6 1.25 105 193 18.7 121 104.64 7.643 854.5 76.5 11300x5250x5830
    SZL6-2.5-AII 6 2.5 105 226 18.7 121 104.64 7.643 830.2 79.3 11300x5250x5830
    SZL10-1.25-AII 10 1.25 105 193 26.5 162 209.28 11.72 1422 78.1 11600x6240x6000
    SZL10-1.6-AII 10 1.6 105 204 26.5 162 209.28 11.72 1431.3 84.9 11600x6240x6000
    SZL10-2.5-AII 10 2.5 105 226 26.5 162 279.1 11.72 1435.7 90.4 11600x6240x6000
    SZL15-1.25-AII 15 1.25 105 193 44 280 261.6 17.25 2133.1 95.4 14000x6300x6220
    SZL15-1.6-AII 15 1.6 105 204 40 255 261.6 17.25 2138.6 96.12 14000x6300x6220
    SZL15-2.5-AII 15 2.5 105 226 40 255 261.6 17.25 2377.2 100 14000x6300x6220
    SZL20-1.25-AII 20 1.25 105 193 75.6 360.8 236 21.06 3135.14 125.9 15800x7300x8650
    Remark 1. Design thermal efficiency is 81~82%.  2. Heat efficiency and coal consumption is calculated by LHV 19845KJ/Kg (4740kcal/kg).



    SZL10-2

    szl
