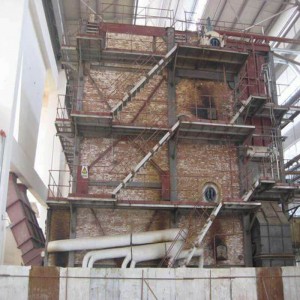

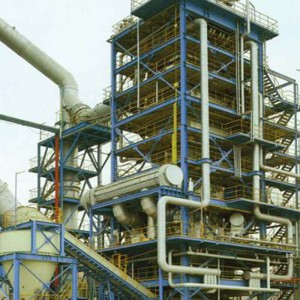

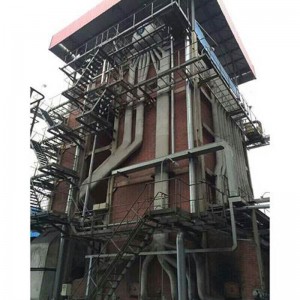

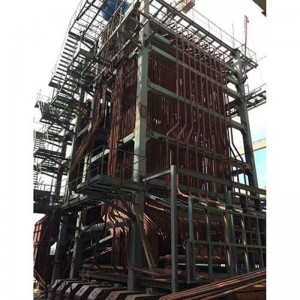

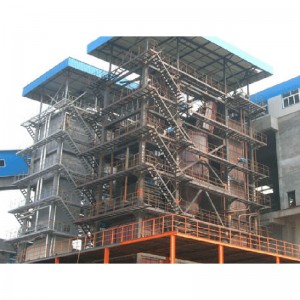

SHL Coal Fired Boiler

Short Description:

SHL Coal Fired Boiler Product Description SHL series boiler is double drum horizontal chain grate bulk boiler, rear part sets air preheater. The burning equipment adopts flake chain grate to match high-quality auxiliary machine, attachment and perfect automatic control equipment, which ensures safe, stable economical and efficient running of boiler. SHL series coal fired boilers are specially designed and optimized for applications to produce low, medium and high pressure steam or hot water w...


  • Min.Order Quantity: 1 set
  • Supply Ability: 50 sets per month
  • Product Detail

    Product Tags

    SHL Coal Fired Boiler

    Product Description

    SHL series boiler is double drum horizontal chain grate bulk boiler, rear part sets air preheater. The burning equipment adopts flake chain grate to match high-quality auxiliary machine, attachment and perfect automatic control equipment, which ensures safe, stable economical and efficient running of boiler.

    SHL series coal fired boilers are specially designed and optimized for applications to produce low, medium and high pressure steam or hot water with rated evaporation capacity from 10 to 75 ton/hr and rated pressure from 1.25 to 3.82 MPa. The design heat efficiency of SHL coal boilers is up to 81~82%.

    Features:

    1) The outlet power of boiler is enough; design efficiency is high.

    2) The boiler adopts flake chain grate, without coal leakage, heat loss of fuel is little.

    3) The wind chamber is independent and sealed.

    4) The air pre-heater is installed at the rear heat surface, which reduces the outlet smoke temperature and rises the boiler feeding air temperature, promote timely and full burning of the fuel.

    5) The outlet of furnace sets slag proof tube, which avoids slag-bonding of convection tubes, improves the heat transfer effect.

    6) Convection tubes sets guide plates for flue gas, which guides the smoke to scour the tube and improve heat transfer coefficient.

    7) Inspection door and observation door are convenient for maintenance; soot-blowing port may clean out the soot formation.

    8) Water feeding and coal feeding is automatic, overpressure and overtemperature interlock protection ensures safe operation of the boiler.

    Application:

    SHL series coal fired boilers are widely used in chemical industry, paper making industry, textile industry, food industry, pharmaceuticals industry, heating industry, construction industry.



    Technical Data of SHL Coal Fired Steam Boiler
     Model Rated Evaporation Capacity (t/h) Rated Steam Pressure (MPa) Feed Water Temperature (°C) Rated Steam Temperature (°C) Radiation Heating Area (m2) Convection Heating Area (m2) Economizer Heating Area (m2) Air Preheater Heating Area (m2) Active Grate Area (m2) Coal Consumption (kg/h) Flue Gas Temperature () Installation Dimension
    (mm)
    SHL10-1.25-AII 10 1.25 105 193 42 272 94.4 170 12 1491 155 12000x7000x10000
    SHL15-1.25-AII 15 1.25 105 193 62.65 230.3 236 156.35 18 2286 159 13000x7000x10000
    SHL20-1.25-AII 20 1.25 105 193 70.08 434 151.16 365.98 22.5 2930 150 14500x9000x12500
    SHL20-2.5/400-AII 20 2.5 105 400 70.08 490 268 365.98 22.5 3281 150 14500x9000x12500
    SHL35-1.25-AII 35 1.25 105 193 135.3 653.3 316 374.9 34.5 4974 144 17000x10000x12500
    SHL35-1.6-AII 35 1.6 105 204 135.3 653.3 316 379.9 34.5 5007 141 17000x10000x12500
    SHL35-2.5-AII 35 2.5 105 226 135.3 653.3 273.8 374.9 34.5 5014 153 17000x10000x12500
    SHL40-2.5-AII 40 2.5 105 226 150.7 736.1 253.8 243.7 35 5913 148 17500x10500x13500
    SHL45-1.6-AII 45 1.6 105 204 139.3 862.2 253.8 374.9 40.2 6461 157 17500x10500x13500
    SHL75-1.6/295-AIII 75 1.6 105 295 309.7 911.7 639.7 1327.7 68.4 10163 150 17000x14500x16400
    Remark 1. SHL coal fired steam boilers are suitable for all types of coals.  2. Design thermal efficiency is 81~82%.  3.Heat efficiency and coal consumption is calculated by LHV 19845KJ/Kg (4740kcal/kg).



    SHL6锅炉总图-Model SHL示意图
