WNS Oil Fired Boiler
WNS Oil Fired Boiler

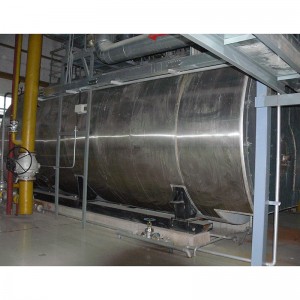

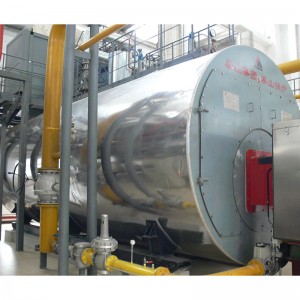

Product Description
WNS series oil boiler adopts ripple furnace, screw thread smoke tube, high efficiency, energy saving, horizontal three-pass, wet back structure, fully automatic control, reasonable structure, easy and safe operation. After the oil is atomized by the burner, the torch is filled in the corrugated furnace and transmits radiant heat through the furnace wall, which is the first pass. The high-temperature flue gas generated from the combustion gathers in the reversal chamber and turns into the second pass, namely the threaded smoke tube bundle. After the convective heat exchange, the flue gas temperature is gradually lowered, flue gas arrives at the front gas chamber, and then turns into the third pass, namely the bare pipe bundle. Finally the flue gas flows into the chimney through the rear gas chamber.
WNS series oil boiler is designed and optimized to produce low pressure steam or hot water with rated evaporation capacity from 1 to 20 ton/hour and rated pressure from 0.7 to 1.6MPa. The design heat efficiency is up to 95%.
Features:
1. Safe operation, stable performance, and sufficient output.
2. The use of clean energy is in line with environmental protection policy, and the boiler room is clean and pollution-free.
3. Fully automatic operation, less work for the furnaceman.
4. The boiler room covers a small area and the infrastructure investment is low.
5. The boiler starts up quickly and reaches the rated working condition within 20 minutes.
6. The burner is imported with superior performance and less maintenance.
7. The boiler adopts 100mm insulation layer, and the outer wall temperature is less than 50°C.
Application:
WNS series oil boiler is widely used in chemical industry, paper making industry, textile industry, food industry, pharmaceuticals industry, heating industry, construction industry.
| Specifications of WNS Oil Fired Hot Water Boiler | ||||||||||
| Model | Rated Thermal Power (MW) | Rated Output Pressure (MPa) | Rated Output Temperature (°C) | Rated Input Temperature (°C) | Heating Area (m²) |
Furnace volume (m³) | Flue Gas Temperature (°C) | Fuel Consumption (kg/h) | Max Transport Weight (Ton) | Max Transport Dimension (mm) |
| WNS0.7-0.7/95/70-Y | 0.7 | 0.7 | 95 | 70 | 18.5 | 0.7 | 161 | 64 | 4.5 | 3130x1600x2040 |
| WNS1.4-0.7/95/70-Y | 1.4 | 0.7 | 95 | 70 | 42.7 | 1.4 | 155 | 129 | 7.2 | 4100x2100x2434 |
| WNS1.4-1.0/95/70-Y | 1.4 | 1 | 95 | 70 | 42.7 | 1.4 | 155 | 128 | 7.2 | 4100x2100x2434 |
| WNS2.1-1.0/95/70-Y | 2.1 | 1 | 95 | 70 | 63.2 | 2.5 | 140 | 193 | 8.9 | 4765x2166x2580 |
| WNS2.8-0.7/95/70-Y | 2.8 | 0.7 | 95 | 70 | 84.3 | 2.5 | 140 | 257 | 9.1 | 4765x2166x2580 |
| WNS2.8-1.0/95/70-Y | 2.8 | 1 | 95 | 70 | 84.3 | 2.5 | 140 | 257 | 9.1 | 4765x2166x2580 |
| WNS4.2-0.7/95/70-Y | 4.2 | 0.7 | 95 | 70 | 132.1 | 4.7 | 162 | 386 | 9.1 | 5570x2400x2714 |
| WNS4.2-1.0/95/70-Y | 4.2 | 1 | 95 | 70 | 132.1 | 4.7 | 162 | 386 | 12.9 | 5570x2400x2714 |
| WNS4.2-1.0/115/70-Y | 4.2 | 1 | 115 | 70 | 132.1 | 4.7 | 162 | 386 | 12.9 | 5570x2400x2714 |
| WNS5.6-1.0/95/70-Y | 5.6 | 1 | 95 | 70 | 153.3 | 5.4 | 163 | 515 | 18.6 | 6490x2910x3230 |
| WNS5.6-1.0/115/70-Y | 5.6 | 1 | 115 | 70 | 153.3 | 5.4 | 163 | 510 | 18.6 | 6000x2645x3053 |
| WNS7-1.0/95/70-Y | 7 | 1 | 95 | 70 | 224.6 | 6.2 | 163 | 635 | 21.3 | 6620x2700x3374 |
| WNS7-1.0/115/70-Y | 7 | 1 | 115 | 70 | 224.6 | 6.2 | 163 | 635 | 21.3 | 6334x2814x3235 |
| WNS10.5-1.0/95/70-Y | 10.5 | 1 | 95 | 70 | 281 | 11.8 | 155 | 957 | 30.3 | 7644x3236x3598 |
| WNS10.5-1.25/115/70-Y | 10.5 | 1.25 | 115 | 70 | 281 | 11.8 | 155 | 955 | 30.3 | 7644x3236x3598 |
| WNS14-1.0/95/70-Y | 14 | 1 | 95 | 70 | 390.8 | 16.8 | 160 | 1264 | 31.4 | 7850x3500x3500 |
| WNS14-1.25/115/70-Y | 14 | 1.25 | 115 | 70 | 390.8 | 16.8 | 160 | 1268 | 31.4 | 7850x3500x3500 |
| WNS14-1.6/130/70-Y | 14 | 1.6 | 130 | 70 | 390.8 | 16.8 | 160 | 1276 | 31.4 | 8139x3616x3640 |
| Remark | 1. Design efficiency is 92~95%. 2. LHV is based on 42915KJ/Kg. | |||||||||
| Specifications of WNS Oil Fired Steam Boiler | ||||||||||
| Model | Rated Evaporation Capacity (t/h) | Rated Steam Pressure (MPa) | Rated Steam Temperature (°C) | Feed Water Temperature (°C) | Heating Area (m²) |
Furnace volume (m³) | Flue Gas Temperature (°C) | Fuel Consumption (kg/h) | Max Transport Weight (t) | Max Transport Dimension (mm) |
| WNS1-0.7-Y | 1 | 0.7 | 170 | 20 | 21.52 | 0.74 | 157 | 67 | 4.9 | 3540x1926x2212 |
| WNS1-1.0-Y | 1 | 1 | 184 | 20 | 21.52 | 0.74 | 165 | 68 | 4.9 | 3540x1926x2212 |
| WNS2-0.7-Y | 2 | 0.7 | 170 | 20 | 49.72 | 1.47 | 158 | 134 | 8.4 | 4220x2215x2540 |
| WNS2-1.0-Y | 2 | 1 | 184 | 20 | 49.72 | 1.47 | 138 | 135 | 8.4 | 4220x2215x2540 |
| WNS2-1.25-Y | 2 | 1.25 | 193 | 20 | 49.72 | 1.47 | 144 | 134 | 8.4 | 4220x2215x2540 |
| WNS3-1.25-Y | 3 | 1.25 | 193 | 20 | 71.86 | 2.16 | 163 | 203 | 10.3 | 4807x2308x2634 |
| WNS4-1.0-Y | 4 | 1 | 184 | 20 | 99.62 | 2.85 | 158 | 267 | 12.3 | 5610×2410×2720 |
| WNS4-1.25-Y | 4 | 1.25 | 193 | 20 | 99.62 | 2.85 | 160 | 267 | 12.3 | 5610×2410×2720 |
| WNS4-1.6-Y | 4 | 1.6 | 204 | 20 | 99.62 | 2.85 | 167 | 268 | 12.3 | 5610×2410×2720 |
| WNS6-1.0-Y | 6 | 1 | 184 | 105 | 149.22 | 3.89 | 152 | 346 | 15.1 | 5962×2711×3034 |
| WNS6-1.25-Y | 6 | 1.25 | 193 | 105 | 149.22 | 3.89 | 167 | 346 | 15.1 | 5962×2711×3034 |
| WNS6-1.6-Y | 6 | 1.6 | 204 | 105 | 149.22 | 3.89 | 167 | 346 | 15.1 | 5962×2711×3034 |
| WNS8-1.0-Y | 8 | 1 | 184 | 105 | 186.33 | 5.1 | 155 | 460 | 20.3 | 6500x2930x3200 |
| WNS8-1.25-Y | 8 | 1.25 | 193 | 105 | 186.33 | 5.1 | 165 | 462 | 20.3 | 6500x2930x3200 |
| WNS8-1.6-Y | 8 | 1.6 | 204 | 105 | 186.33 | 5.1 | 169 | 467 | 20.3 | 6500x2930x3200 |
| WNS10-1.25-Y | 10 | 1.25 | 193 | 105 | 218.63 | 5.8 | 157 | 574 | 21.9 | 6420x2930x3360 |
| WNS10-1.6-Y | 10 | 1.6 | 204 | 105 | 218.63 | 5.8 | 168 | 580 | 21.9 | 6420x2930x3360 |
| WNS15-1.25-Y | 15 | 1.25 | 193 | 105 | 285.9 | 11.6 | 170 | 865 | 35 | 7500x3250x3700 |
| WNS15-1.6-Y | 15 | 1.6 | 204 | 105 | 285.9 | 11.6 | 166 | 885 | 35 | 7500x3250x3700 |
| WNS20-1.25-Y | 20 | 1.25 | 193 | 105 | 440 | 16 | 164 | 1158 | 43.2 | 8160x3680x3750 |
| WNS20-1.6-Y | 20 | 1.6 | 204 | 105 | 440 | 16 | 165 | 1159 | 43.2 | 8160x3680x3750 |
| Remark | 1. Design efficiency is 92~95%. 2. LHV is based on 42915KJ/Kg. | |||||||||
